Fouling on ships is biological growth that can settle on the underwater hull of boats and ships. The consequence of this is a strong roughening of the surface, which increases the resistance of the ship during sailing. As a result, the ship slows down or requires more fuel to maintain the same speed.
Fouling in sea water (marine environment) is much stronger than in fresh water. There are many more different types of organisms in the sea and often in larger numbers. The composition of the seawater and other environmental conditions also make a big difference: in tropical waters there is much more growth pressure than in the brackish northern waters of Scandinavia. That does not mean, however, that fouling in the Baltic Sea would not be a problem.
Antifouling or fouling is a collective term for various techniques that can prevent or reduce fouling or fouling. The most common technique is the use of special coatings or paints that are applied to the underwater hull of the ship. There are different types of antifouling paints, some especially for pleasure craft, others for marine shipping. For the large ships there are also different products for vessels that sail a lot or very fast or little and slow.
The effect of antifouling paints can be based on two mechanisms:
Many antifouling paints are based on the action of toxic substances, also called biocides. These substances are slowly released from the paint and kill the small larvae of fouling organisms that would like to settle on the surface. Paints with these types of substances are therefore based on mechanism 1 (see above).
Due to the release of biocides into the environment, the government imposes requirements on the properties of these products. Producers will have to demonstrate through prescribed research protocols that their product meets these requirements, only after that a product may be sold. The regulations for the authorization of antifouling paints have been tightened up over the past 15 years. The authorization policy for biocides and therefore also antifouling paints is now based on a European basis in the so-called Biocidal Products Regulation.
In addition, there are also paints that are not based on the effect of toxic substances. The most important category in this is the so-called “fouling release” or also “non-stick” coatings based on silicone binders. These paints have such surface properties that fouling organisms cannot (properly) adhere to the paint. This means, for example, that creatures that try to settle on the hull of a ship with such a coating can easily be sailed away if the ship starts sailing again at a certain speed. With the first generation of silicone paints, this was still a speed of over 20 knots; for currently available fouling release coatings, some manufacturers already claim a clean sailing effect from 8 knots, but the substantiation of those claims is often very poor. Nevertheless, we can conclude that the paint suppliers have made a lot of progress in the development of such non-toxic products.
The main reason for using antifouling is to prevent extra fuel consumption and thus cost savings. A second aspect related to this is that less fuel consumption also produces less greenhouse gas emissions. With the right product on the ship you can therefore save on transport costs. You must choose the right product on the basis of information about the (long-term) effect of the coating. Various test methods are available to determine this effect. Endures has the knowledge and experience (more than 50 years) in-house to be of service to companies and organizations in this area. Depending on your specific question, we are happy to explain the options.

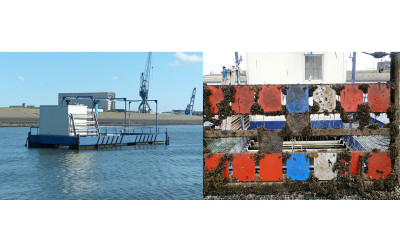

Den Helder is the home port of the Dutch Royal Navy. The Endures laboratory is also located in the same port. Our laboratory has flowing natural seawater in which we can perform all kinds of exposure experiments with panels with coatings, but also with material samples, parts of installations up to complete box coolers.
The expertise and experience of Endures lies mainly in the field of maritime corrosion and anti-fouling, and we also have very long experience with corrosion and damage research. Companies that have questions about material use and material protection or are confronted with damage as a result of material failure or corrosion can always contact Endures.
The IMO (International Maritime Organization, part of the United Nations) established a so-called Antifouling Convention (AFS Convention) in 2001 in which the use of harmful antifouling paints, in particular products based on organotin compounds, is banned worldwide. In 2008 this convention came into effect and there is a “Certificate of Compliance” that ship owners must be able to show for the paint system that has been applied to their ship. To find out which products are and which are not regulated under this convention, please contact Endures.
In recent years, there has been more IMO talk about reducing greenhouse gas emissions in the shipping industry. It is expected that more stringent regulations will be added in the near future. Ship owners need to measure and monitor emissions and take measures to reduce emissions. Additionally, IMO has stimulated to work on drafting a new worldwide standard (ISO 19030) on hull and propeller performance measurements.
Would you like to know more about performing (the best) tests for the coatings of your ship / ships?
Companies and organizations that want to know more about antifouling products and techniques can contact Endures for the following activities, for example:
An important technique to protect metals against corrosion is the use of anti-corrosive or “protective” coatings. There are many types of “protective” coatings on the market, often also specially developed for specific applications in which more or less protection or service life is required. Especially on ships and structures that are used on or in the sea, the performance requirements for such coatings are often high. Incorrect choice of products or incorrect method of application of a coating can be disastrous for the economic yield or life of the ship or installation.
Companies and organizations that want to learn more about the performance of protective coatings for civil and maritime applications can contact Endures for the following activities, for example:
Would you like to know more about antifouling and protective coatings?
Together with leading industry experts, ENDURES BV has recently launched a unique corrosion prediction tool. With Port4Innovation partners, Control Union and VectorMM a web application was developed, which is able to predict corrosion on vessels based on historic data and relevant operational conditions.
Boat owners who want to switch to a more environmentally friendly antifouling have an important question: does it work? Various alternatives are currently being tested for efficacy on recreational craft in fresh and salt water.
Finocas Group NV and First Dutch Innovations (FDI) BV officially announced their joint venture on Monday 24 June in which Endures will collaborate with OCAS – research center for the application of steel, headquartered in Zelzate (Belgium). Read the full …
In the May issue of HANSA International Maritime Journal, Endures released a technical publication on “Performance testing for Antifouling Coatings”.

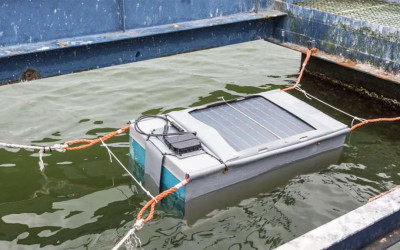

Floating solar panels can provide a lot of energy. At the same time, the panels face different weather conditions and hardships. In Den Helder, research agency Solliance Solar Research recently started a trial to test how solar panels …
